Brandnew Info - 16/05/2025 The durability of resin gears has improved significantly with our new gear material (X2406).

A new long-life gear material has been added to the S-BEAR® series, the original material of Starlite. The new gear material (X2406) achieves a longer service life than PEEK* resin, which is generally used for high-durability applications. Another feature is its ability to deliver stable gear characteristics under high loads across a wide temperature range from ambient temperature to 150 °C. We will continue to offer highly cost-effective proposals for applications such as FA systems, robots, industrial machinery, and mobility.

  • *: PEEK is super engineering plastics with excellent heat resistance, chemical resistance, mechanical strength, and dimensional stability. It is a crystalline resin with particularly high rigidity and wear resistance and is resistant to deterioration even under high temperatures and sliding conditions.

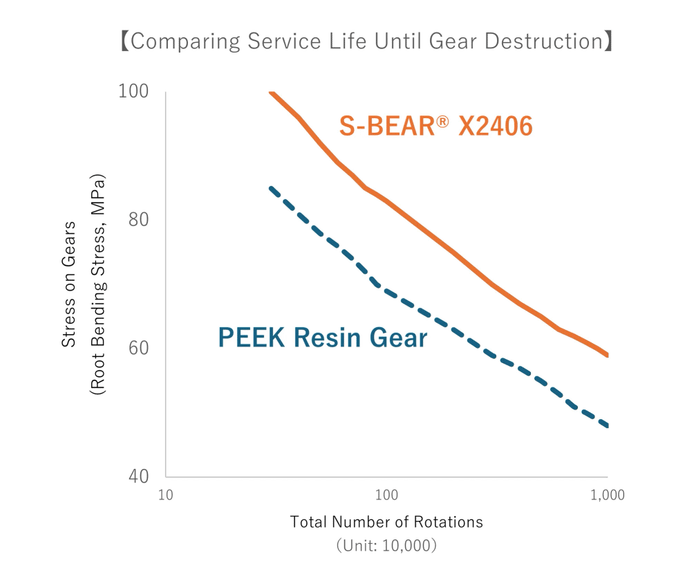

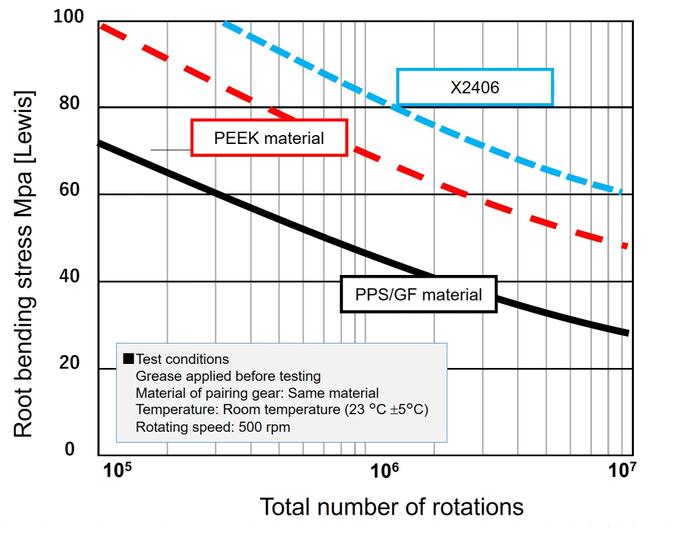

Gear durability test

Inquiry and Contact : https://starlite.co.jp/en/contact/
